Water tanks, IP-rated electrical enclosures, earthmoving brackets, control panel boxes and machined components, made in New Delhi.
Xdoah Engineering India Private Limited makes precision sheet metal parts, stamped components and CNC-machined parts for industrial OEMs from a plant in South West Delhi. Work comes from railways, defence, switchgear, kiosks and vending machines, automotive, architectural construction and food processing machinery. Cutting, forming, welding, coating and testing are done in house.
3D modelling, flat patterns, nesting and first-article prototypes in SolidWorks and AutoCAD.

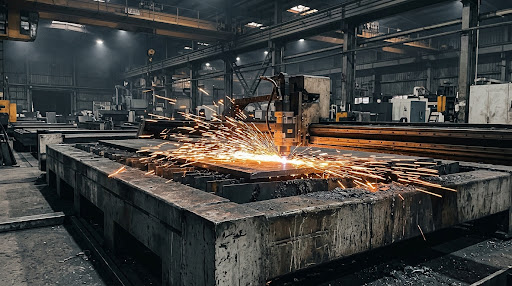

6kW, up to 30 mm, on a 2050 x 4100 mm bed with ±0.03 mm repeatability.

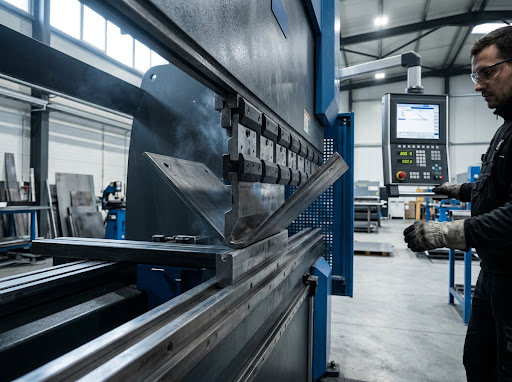

Up to 3000 mm length and 250 tons on CNC press brakes with Delem controllers.
Hydraulic and mechanical presses from 50 to 1000 tons.
Turning centers, 5-axis machining centers, VMC and HMC milling.
MIG, TIG and arc welding by welders qualified to EN 15085 and ISO 3834-2.
Railway tanks, kiosks, HVAC housings, electrical panels and earthmoving brackets, with in-house leak testing.
Stainless steel polishing, grinding, painting, powder coating, zinc plating and hot-dip galvanizing.

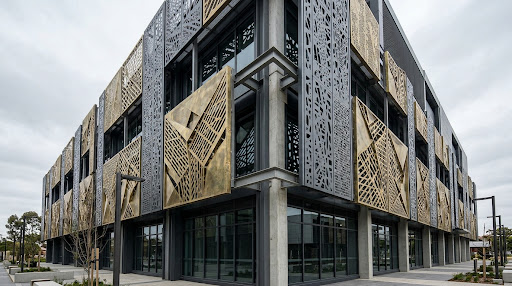

Facades, divider screens, jalis, ceilings, pergolas, gates, railings and custom metal furniture, cut from CAD drawings prepared with architects and contractors.
| Parameter | Value |
|---|---|
| Laser power | 6 kW |
| Laser bed | 2050 mm x 4100 mm |
| Positional repeatability | ±0.03 mm to 0.05 mm |
| Maximum laser cutting thickness | Stainless steel and aluminium 30 mm; mild steel 25 mm; brass 15 mm; copper, titanium, GI and Corten steel 12 mm |
| CNC press brake | 3000 mm length, up to 250 tons |
| Presses | 8 machines, 50 to 1000 tons |
| Batch sizes | 1 to 10,000+ units |
| In-house testing | Optical emission spectrometer, hydrostatic leak testing, radiography, ultrasonic weld verification |
| Quality standards | ISO 9001:2015, ISO 3834-2, EN 15085 |
Xdoah Engineering works with OEMs, infrastructure contractors and architectural developers on long-term subcontract manufacturing. We work to the tolerances on your drawing, commit to delivery dates and quote components transparently.
